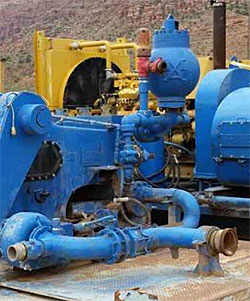

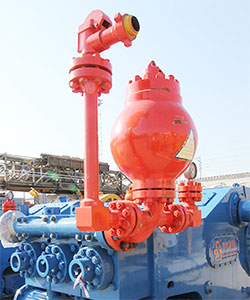

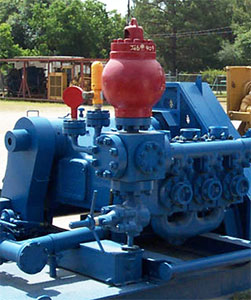

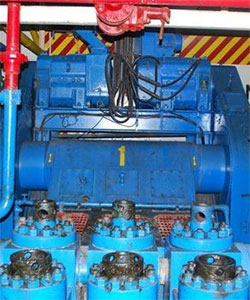

Have gained increased popularity due to our consistently high quality, excellent service and support and interchangeability with the US counterparts. Available in a variety of sizes, these pumps feature longer strokes resulting in lower stroke speeds thus prolonging pump service life. DK mud pumps come stardard with complete fluid end accesories, pulsation dampners, spare parts and tool box. A wide variety od unitizes packages, both mechanical and electrical, are available to suit any work applications.



F-500 Triplex Mud Pump
Max. Imput Power (HP - kW): 500 - 375
Rated Pump Speed (SPM): 165
Max. Fluid Cylinder Liner Bore (in - mm): 6-3/4 - 171
Stroke Length (in - mm): 7-1/2 - 191
Gear Ratio: 4.286:1
Suction Inlet (in - mm): 8 - 203
Discharge Outlet (in - mm): 4 - 102
Valve and Valve Seats: API No.5



F-800 Triplex Mud Pump
Max. Imput Power (HP - kW): 800 - 596
Rated Pump Speed (SPM): 150
Max. Fluid Cylinder Liner Bore (in - mm): 6-3/4 - 171
Stroke Length (in - mm): 9 - 229
Gear Ratio: 4.185:1
Suction Inlet (in - mm): 10 - 254
Discharge Outlet (in - mm): 5-1/8 - 128
Valve and Valve Seats: API No.6



F-1000 Triplex Mud Pump
Max. Imput Power (HP - kW): 1000 - 746
Rated Pump Speed (SPM): 140
Max. Fluid Cylinder Liner Bore (in - mm): 6-3/4 - 171
Stroke Length (in - mm): 10 - 254
Gear Ratio: 4.207:1
Suction Inlet (in - mm): 12 - 305
Discharge Outlet (in - mm): 5-1/8 - 128
Valve and Valve Seats: API No.6



F-1300 Triplex Mud Pump
Max. Imput Power (HP - kW): 1300 - 969
Rated Pump Speed (SPM): 120
Max. Fluid Cylinder Liner Bore (in - mm): 7 - 177.8
Stroke Length (in - mm): 12 - 304.8
Gear Ratio: 4.207:1
Suction Inlet (in - mm): 12 - 305
Discharge Outlet (in - mm): 5-1/8 - 128
Valve and Valve Seats: API No.7



F-1600 Triplex Mud Pump
Max. Imput Power (HP - kW): 1600 - 1193
Rated Pump Speed (SPM): 120
Max. Fluid Cylinder Liner Bore (in - mm): 7 - 177.8
Stroke Length (in - mm): 12 - 304.8
Gear Ratio: 4.207:1
Suction Inlet (in - mm): 12 - 305
Discharge Outlet (in - mm): 5-1/8 - 128
Valve and Valve Seats: API No.7
