MODELO ZJ30 / 18001
Nominal Drilling Depth (4-1/2" DP) m (ft): 3.000 (10,000')
Max. Static Hook Load kN (lbs): 1.800 (400,000)
Power Rating kw (HP): CATC - 15 x 2 - 402 x 2 (540 x 2)
Transmission: Allison - S5600HR x 2

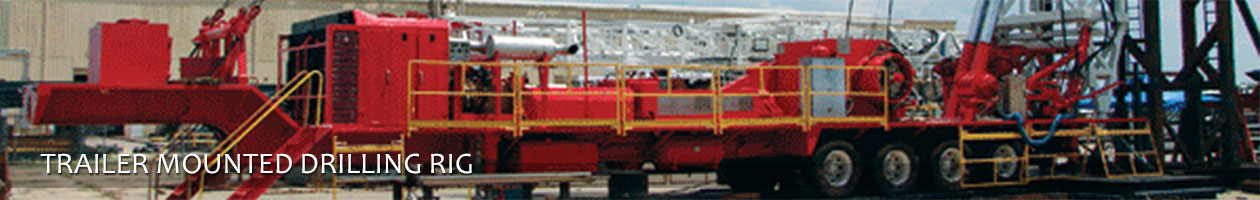

Chassis Drive Type: Trailer
Min. Turning Dia.m (ft): 36 (118')
Min Ground Clearance mm (in): 340 (13)
Drawworks: Double Drum
Main Drum, Dia.x Length mm (in): 625 x 1.056 (25" x 42")
Main Brake: Band or Hydraulic Disc Brake
Main Brake Cooling System: Forced Water Circulation
Auxiliary Brake: EATON WCB324
Shifts: 5F + 1R
Mast: JJ180 / 38 Double Section Telescoping
Height m (ft): 38 (125')
Max Static Load kN (lbs): 1.800 (400,000)
Monkey Board Height m (ft): 21 (69') / 22 (72')
Control / Lighting / Power System: 24 V / 220 V / 460 V
Hydraulic / Air System Pressure MPa (psi):
14 / 1 (2.000 / 145)
Substructure: ZT350 / 6-Z Folding Type
Height / Clear Height m (ft): 6 / 4.8 (20' / 15.7')
Area / Setback Capacity m2 / m (ft2 / ft): 7 x 5 / 3.200
(4 - 1/2 DP) 24'x 17' / 10,000' (4 - 1/2 DP)
Rotary Table: ZP275 (ZP205)
Hook Block Combo: YG180
Swivel: SL180
MODELO ZJ40 / 2250T
Nominal Drilling Depth (4-1/2" DP) m (ft): 4.000 (13,000')
Max. Static Hook Load kN (lbs): 2.250 (500,000)
Power Rating kw (HP): CATC - 18 x 2 - 470 x 2 (630 x 2)
Transmission: Allison - S6610HR x 2
Chassis Drive Type: Trailer
Min. Turning Dia.m (ft): 36 (118')
Min Ground Clearance mm (in): 340 (13)
Drawworks: Single Drum
Main Drum, Dia.x Length mm (in): 640 x 1.139 (25" x 45")
Main Brake: Band or Hydraulic Disc Brake
Main Brake Cooling System: Forced Water Circulation
Auxiliary Brake: EATON WCB324
Shifts: 5F + 1R
Mast: JJ225 / 38 (41) Double (Triple) Section Telescoping
Height m (ft): 38 / 41 (125' / 134')
Max Static Load kN (lbs): 2.250 (500,000)
Monkey Board Height m (ft): 22 (72') / 23 (75')
Control / Lighting / Power System: 24 V / 220 V / 460 V
Hydraulic / Air System Pressure MPa (psi):
14 / 1 (2.000 / 145)
Substructure: ZT350 / 6-Z Folding Type
Height / Clear Height m (ft): 6 / 4.8 (20' / 15.7')
Area / Setback Capacity m2 / m (ft2 / ft): 7 x 5 / 3.200
(4 - 1/2 DP) 24'x 17' / 10,000' (4 - 1/2 DP)
Rotary Table: ZP275
Hook Block Combo: YG225
Swivel: SL225
